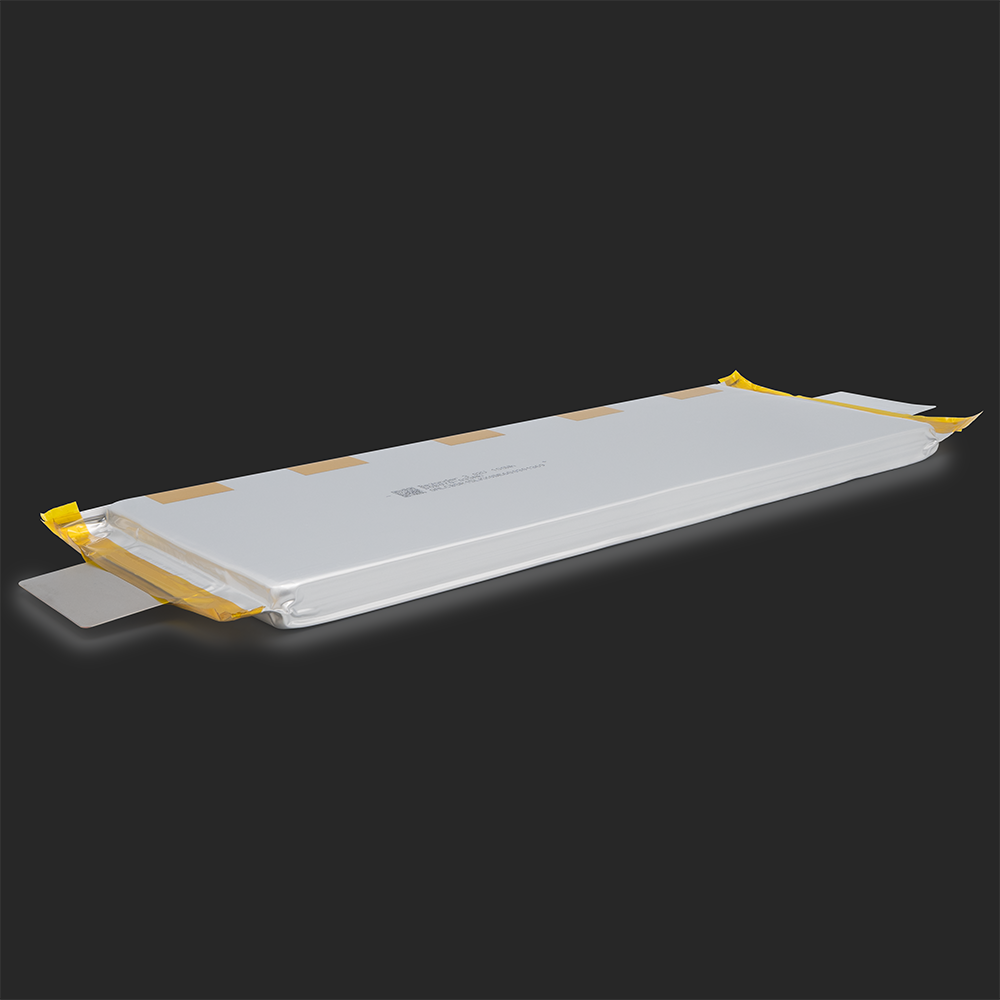

Measured at Batemo: the Beyonder AS BePowered-310 delivers 116 Wh/kg energy density and sustains 892 W continuous power in a pouch cell.
Opened, measured and modelled at Batemo in Karlsruhe, Germany · 196 measured parameters per cell · not datasheet values
Available asData
this cell342 more sample cells
ENERGY
The energy exchanged during the C/10 discharge described under Capacity, divided by the cell’s mass or volume. Measured directly, not calculated from the nominal capacity. Full definition
The energy exchanged during the C/10 discharge described under Capacity, divided by the cell’s mass or volume. Measured directly, not calculated from the nominal capacity. Full definition
The energy exchanged during the C/10 discharge described under Capacity, in watt-hours. Measured directly, not calculated from the nominal capacity. Full definition
POWER
The peak or continuous power above, divided by the cell’s mass or volume. Not a datasheet rating — the current behind it was measured on Batemo’s own test benches. Full definition
The peak or continuous power above, divided by the cell’s mass or volume. Not a datasheet rating — the current behind it was measured on Batemo’s own test benches. Full definition
The peak or continuous power above, divided by the cell’s mass or volume. Not a datasheet rating — the current behind it was measured on Batemo’s own test benches. Full definition
The peak or continuous power above, divided by the cell’s mass or volume. Not a datasheet rating — the current behind it was measured on Batemo’s own test benches. Full definition
Peak figures come from the highest current Batemo measured the cell to sustain briefly; continuous figures use the lower current it can sustain without interruption. Both stop at the same 2.5 V / 80 °C condition as the discharge measurements. Full definition
Peak figures come from the highest current Batemo measured the cell to sustain briefly; continuous figures use the lower current it can sustain without interruption. Both stop at the same 2.5 V / 80 °C condition as the discharge measurements. Full definition
CURRENT
The highest constant discharge current Batemo measured the cell to sustain briefly, before the same 2.5 V / 80 °C stop condition applies. Full definition
The highest constant discharge current Batemo measured the cell to sustain continuously, before the same 2.5 V / 80 °C stop condition applies. Full definition
PHYSICAL
Measured on the physical cell at Batemo, in Karlsruhe, Germany — not taken from the manufacturer's drawing. Volume is derived from the measured capacity and its volumetric density, not measured with a caliper. Full definition
Measured on the physical cell at Batemo, in Karlsruhe, Germany — not taken from the manufacturer's drawing. Volume is derived from the measured capacity and its volumetric density, not measured with a caliper. Full definition
Measured on the physical cell at Batemo, in Karlsruhe, Germany — not taken from the manufacturer's drawing. Volume is derived from the measured capacity and its volumetric density, not measured with a caliper. Full definition
Measured on the physical cell at Batemo, in Karlsruhe, Germany — not taken from the manufacturer's drawing. Volume is derived from the measured capacity and its volumetric density, not measured with a caliper. Full definition
CELL
Discharged from a full charge at a constant C/10 current and 25 °C, until the cell reaches 2.5 V or its surface reaches 80 °C. Nominal is the value from the datasheet; measured, gravimetric and volumetric are what Batemo recorded during that discharge. Full definition
Discharged from a full charge at a constant C/10 current and 25 °C, until the cell reaches 2.5 V or its surface reaches 80 °C. Nominal is the value from the datasheet; measured, gravimetric and volumetric are what Batemo recorded during that discharge. Full definition
The charge-averaged voltage across the same C/10 discharge — the exchanged energy divided by the exchanged charge, not a single number picked from a curve. It is a measured mean, not the nominal voltage printed on a datasheet. Full definition
In Batemo Insights
The table above gives you one capacity number. Below is what Beyonder AS BePowered-310 does under load — measured on our own test bench, across many operating points and several ambient temperatures. Every cell in the library is measured under identical conditions, which is what makes them comparable at all. At 1C — the one rate measured on every cell — usable energy is 87% to 99% of what the same cell delivers at C/10.
All three panels below use the same 14 measured operating points, at 25 °C ambient.
energy
14 pts · 25 °C · lin
The graph visualizes how much energy the cell can deliver when operated at different powers.
usable energy / Wh
discharge power / W
thermal
14 pts · 25 °C · lin
The greater the thermal losses, the more the cell heats up, resulting in higher depleted power.
max. surface temperature / °C
discharge power / W
runtime
14 pts · 25 °C · log
The more power the cell supplies, the shorter it can deliver the power.
runtime to cutoff / s (log)
discharge power / W
Every cell is a compromise. This cell's own measurements point to three challenges you will face with it. Each one shows the number behind it and where Batemo helps you solve it.
BMS development
0–406.9A0–100% SOCup to 55°C
a BMS has to be right in every corner of this space
0
500
1000
W/kg
40 °C
25 °C
0 °C
−20 °C
hottest point
measured load points · example cell
the challenge
This cell runs anywhere between 0 A and 406.9 A. How wrong is my state of charge across that span?
Every percent of estimation error is paid for twice: once as range nobody uses, once as margin nobody touches.
BMS developmentThermal analysis
about 56mW/cm²
of heat at typical operation — 45 W in total
heat out
heat out
800 cm² of surface
the challenge
I push 892 W through each cell of my module. The sensor sits on the case. How far is it from the hot spot?
A surface temperature is not the temperature that decides. What no sensor on a finished cell can show is the temperature inside it — and the gap between the two grows exactly where it matters.
Thermal analysisSystem optimization
2.976V mean
this cell at C/10 — each dot a load case of an example cell
0
20
40
60
Ah/kg
C/10
1C
4C
8C
12C
datasheet
cut-off voltage
heat limit
measured load cases · example cell
the challenge
My load peaks at 406.9 A against 320.3 A continuous. Does the pack dip below cut-off, or does derating bite first?
An equivalent circuit fitted to a handful of measurements reproduces those points and drifts everywhere else — which is exactly where a system study goes.
System optimizationThese three are the challenges this cell's own numbers raise. Which of them decides your product is something only your load profile can say — and that is the next question, not this one.
Every cell in the library is measured before a model is built from it. The mean accuracies are published as soon as the Batemo Cell Model is finished.
Every curve was recorded from a full state of charge, in a climate chamber under free convection. The model is built on these.
Nearest by measured specific energy and power — the two axes of the Ragone map above. Not by chemistry, and not a recommendation. Other numbers, like continuous current, can still differ a lot.
The two closest cells in the library
Same build · 77% apart
Ring percentages measure overall distance — energy and power combined. The ×-numbers on the dashed box measure just one axis: a point on that edge has that many times this cell's own specific energy or power.
Closest behaviour · 28% apart
